Used Artisan Industries Horizontal Thin Film Evaporator | 316 Stainless Steel | 5 HP Main Drive | 60 PSIG @ 570°F | NB# 2625 | Built 2007 | Mounted on Frame with Controls

🏭 Manufacturer Information

• Manufacturer: Artisan Industries, Inc.

• Type: Horizontal Thin Film Evaporator

• Model Year: 2007

• Serial Number: 86186

• National Board Number: 2625

• Condition: Used (Excellent Mechanical Condition)

• Construction: 316 Stainless Steel (Product Contact Surfaces)

• Mounting: Carbon Steel Frame

• Country of Manufacture: USA

⚙️ Product Description

The Artisan Industries Horizontal Thin Film Evaporator is a high-efficiency thermal separation and concentration system built for viscous, heat-sensitive, or fouling-prone materials in chemical, pharmaceutical, and food industries.

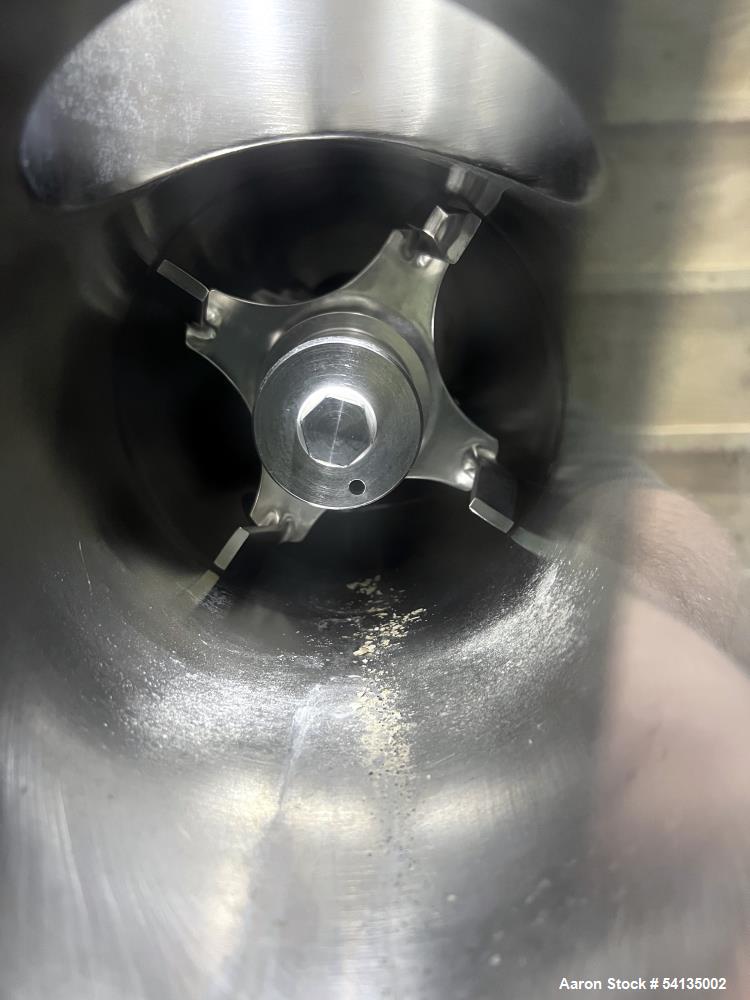

Constructed from 316 stainless steel, this unit ensures corrosion resistance, clean processing, and reliable long-term operation. The horizontal rotor design promotes even film distribution and exceptional heat transfer, making it ideal for continuous or batch evaporation under controlled thermal conditions.

The system features:

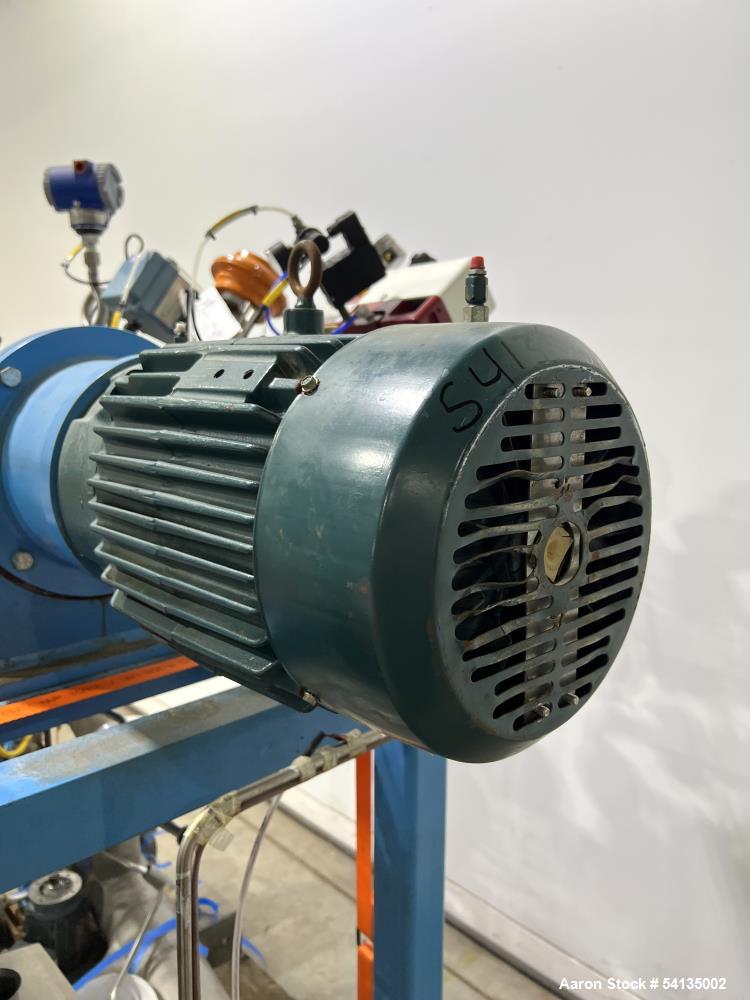

• 5 HP main drive motor (3/60/230/460V, 1165 RPM) for the rotor assembly

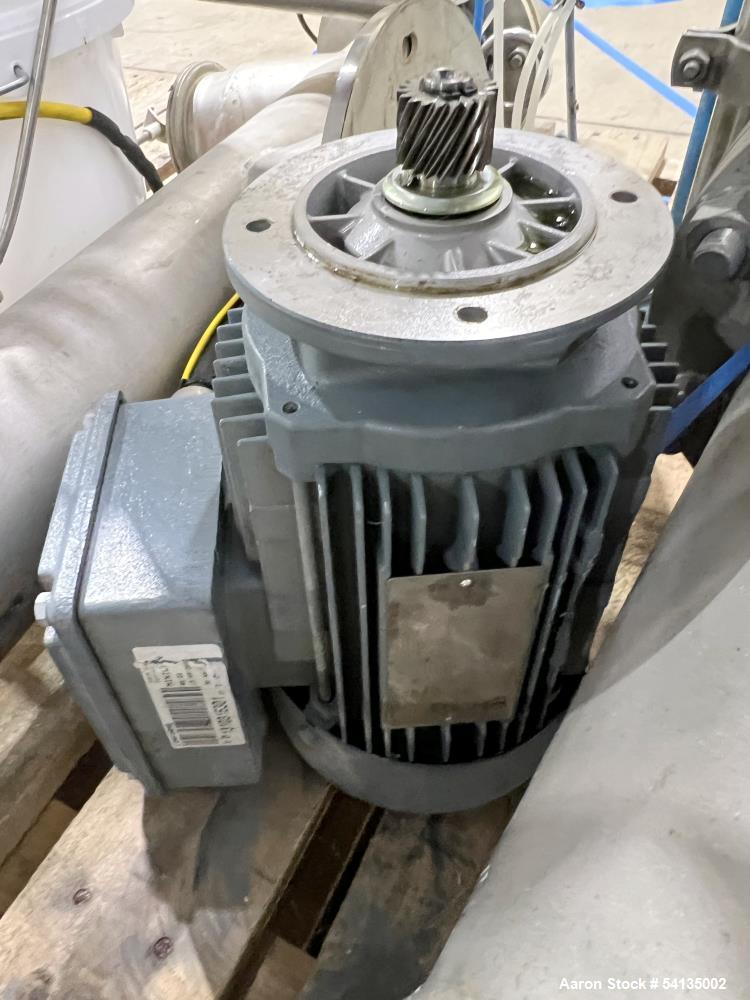

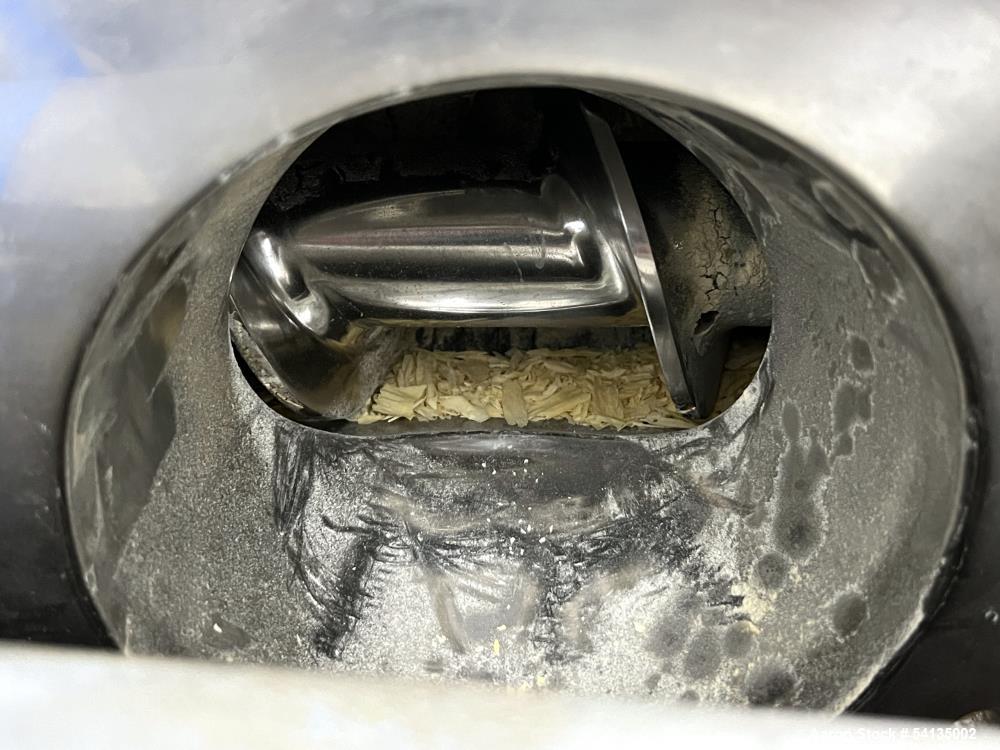

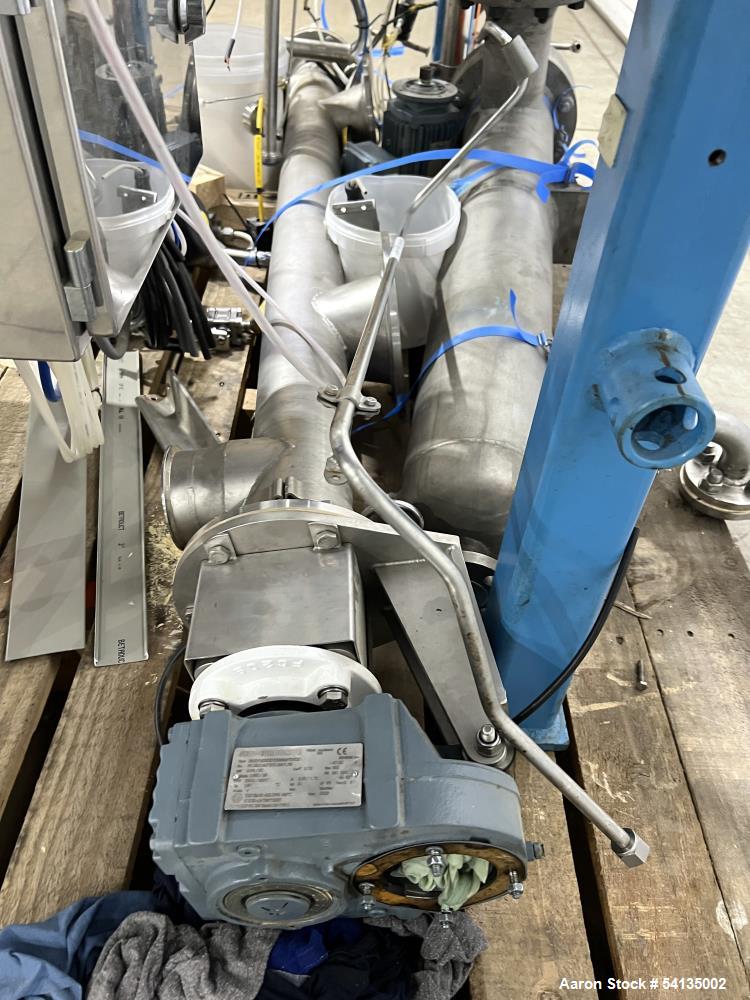

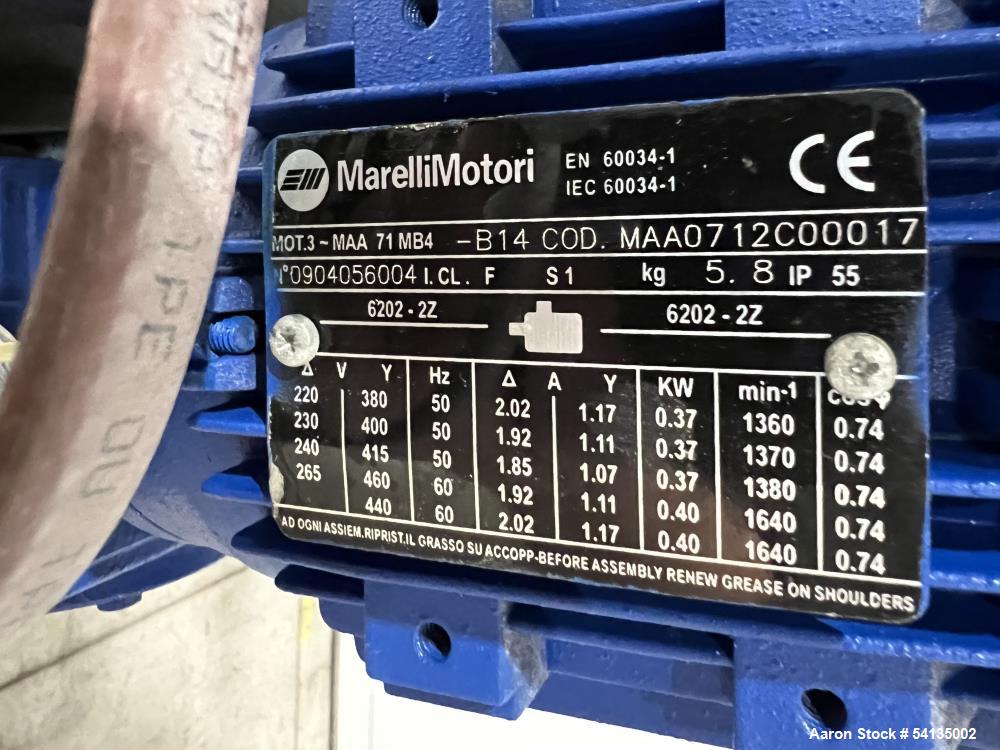

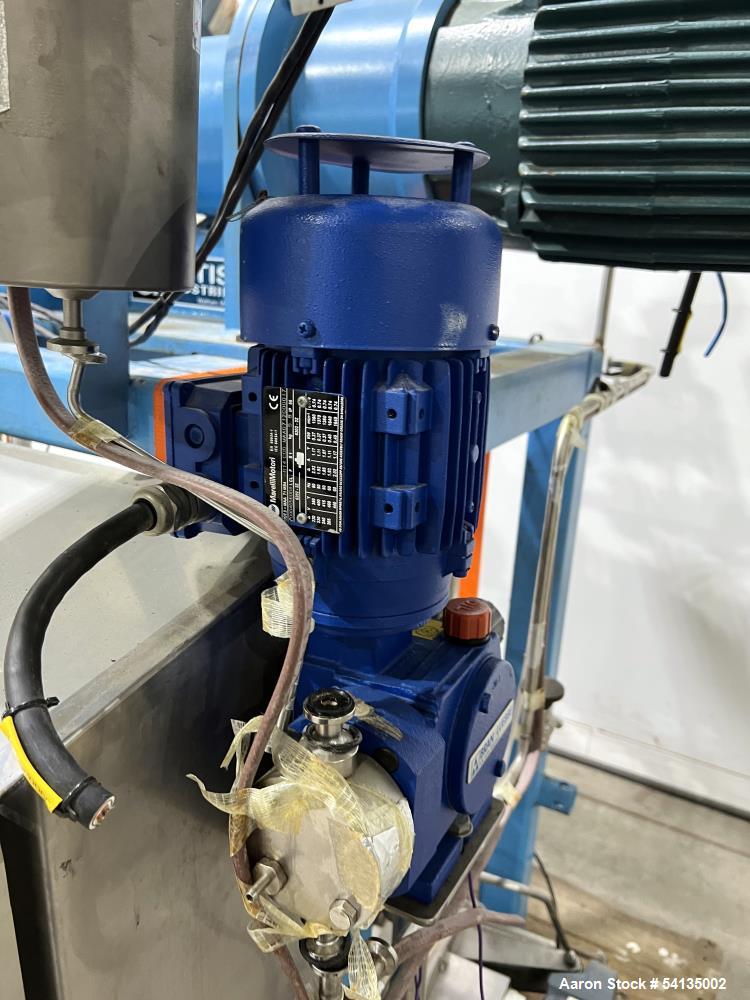

• Screw conveyor (4” diameter × 62” long) with a 0.55 kW (0.73 HP), 230/400V, 1360 RPM drive motor

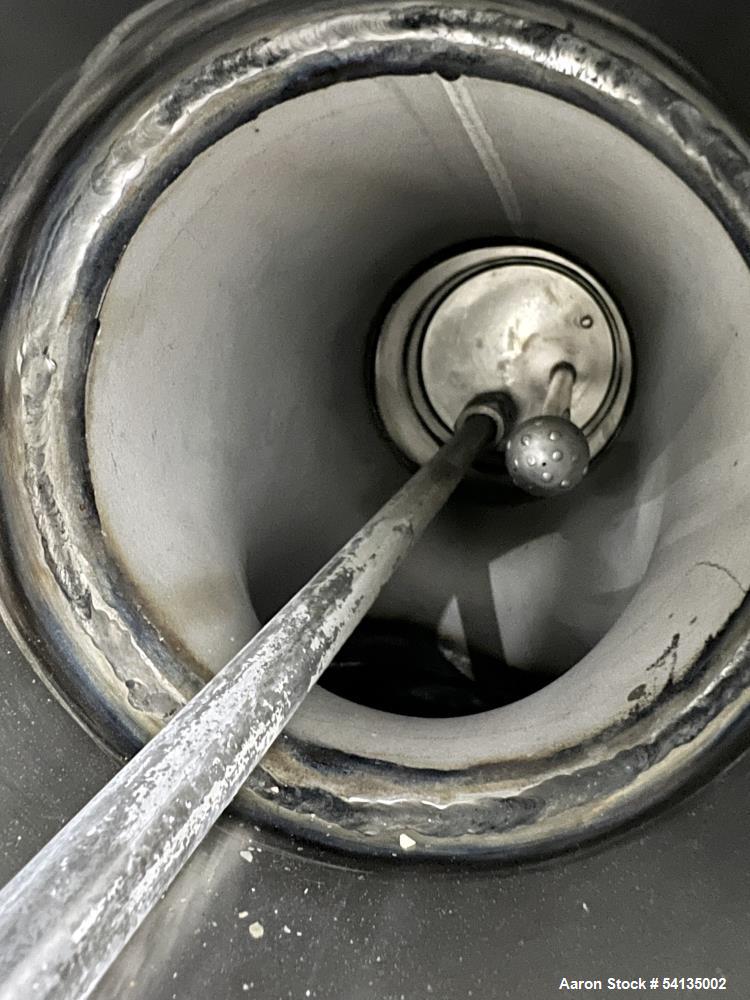

• Seal fluid reservoir with spray ball (6” diameter × 40” long)

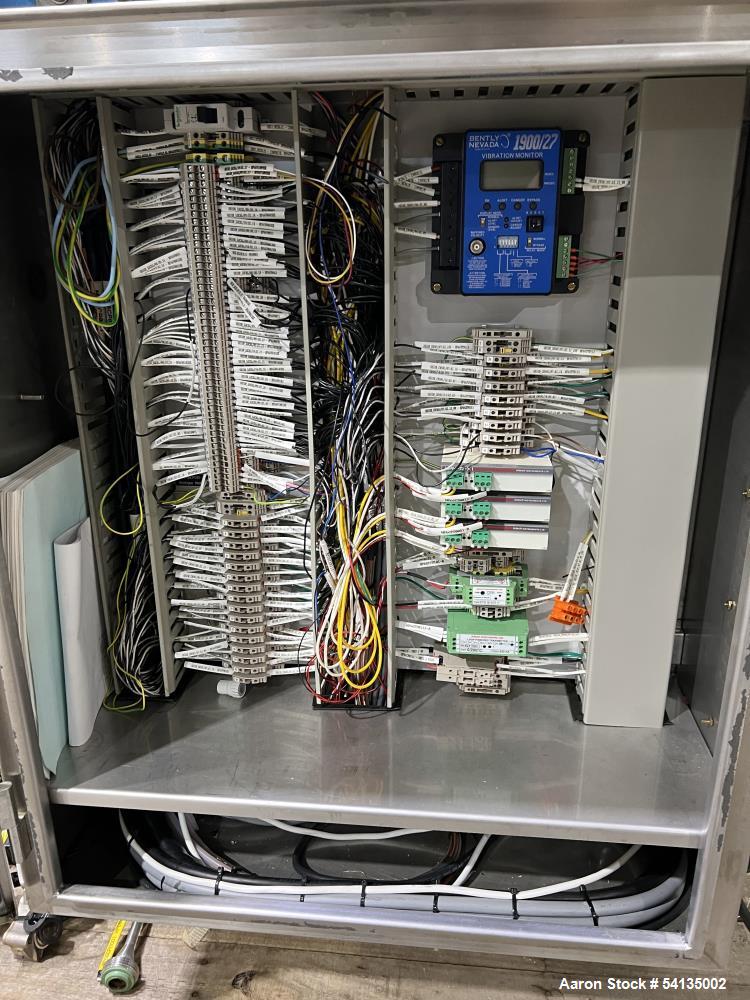

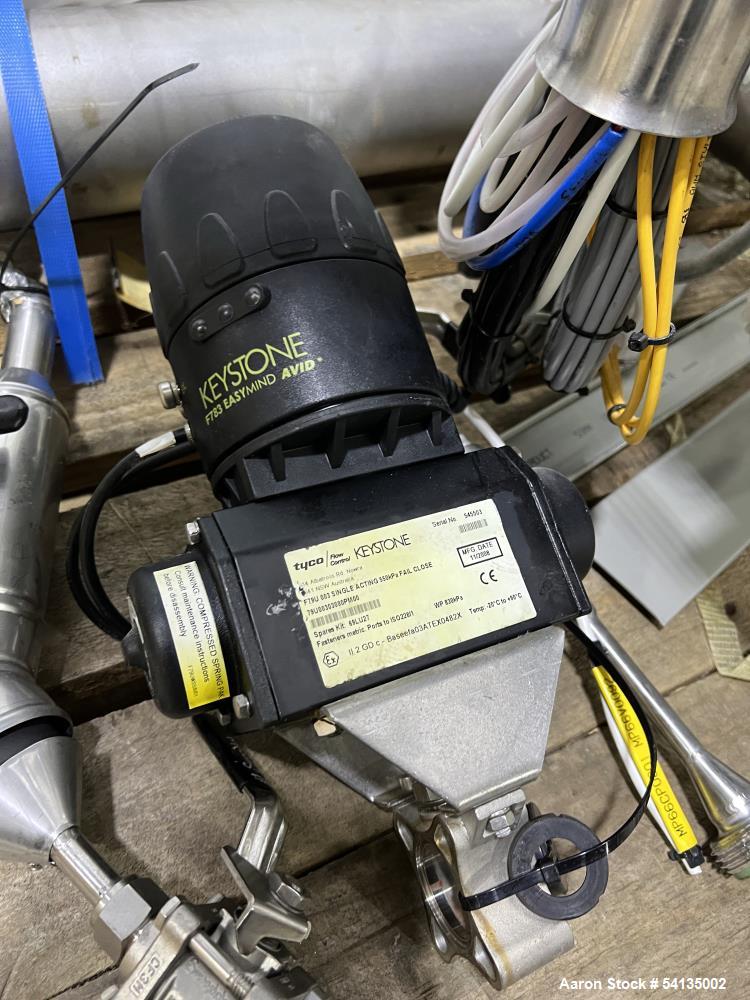

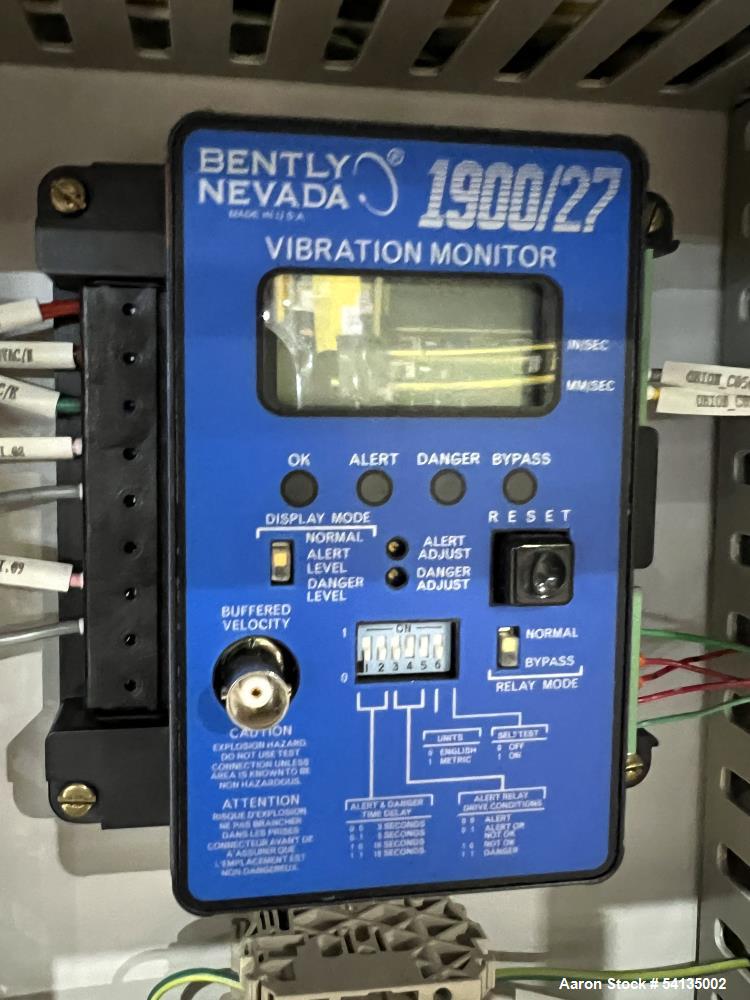

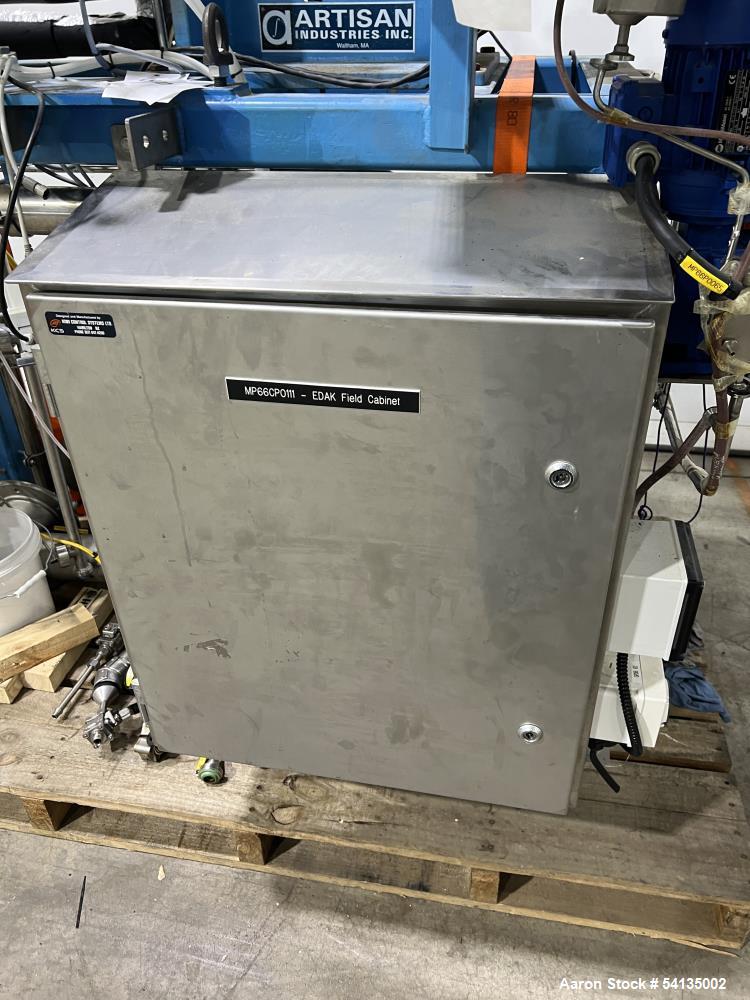

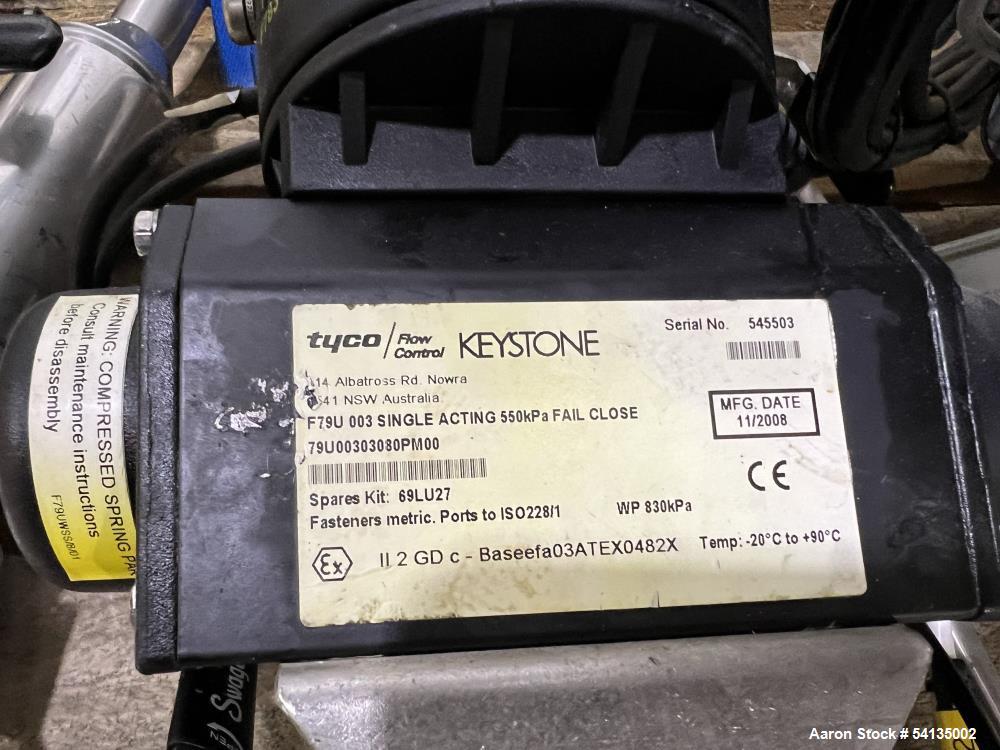

• Mounted control panel with vibratory sensor and keystone valve

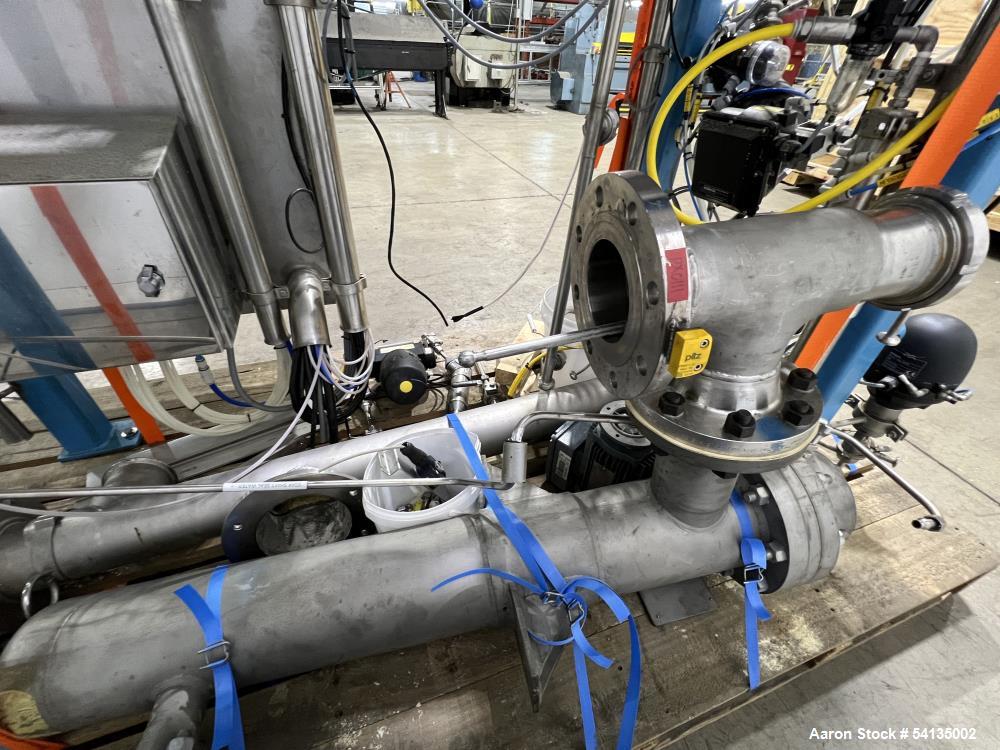

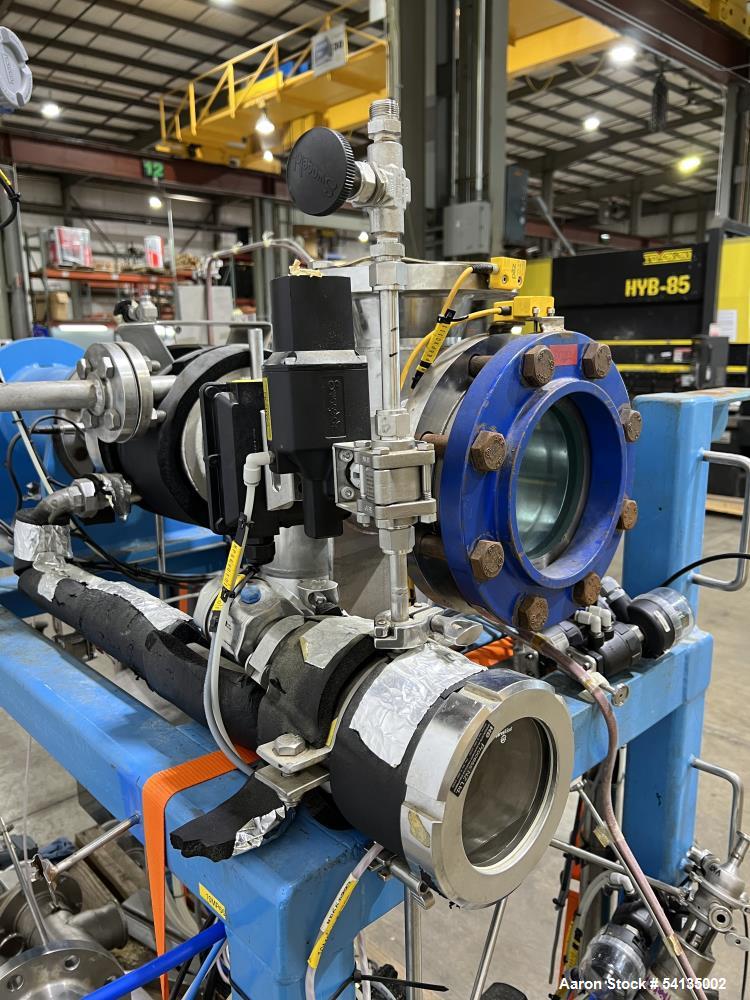

• Interconnecting piping and end flange with sight glass

The evaporator is rated for 60 PSIG at 570°F (shell) and 165 PSIG at 570°F (AEWP), ensuring robust, safe operation in demanding processing environments.

(Note: Vacuum pump not included.)

📏 Specifications

• Construction: 316 Stainless Steel

• Configuration: Horizontal thin film evaporator

• Shell Dimensions: 6” diameter × 32” long

• Connections: 4” diameter ports

• Screw Conveyor: 4” diameter × 62” long

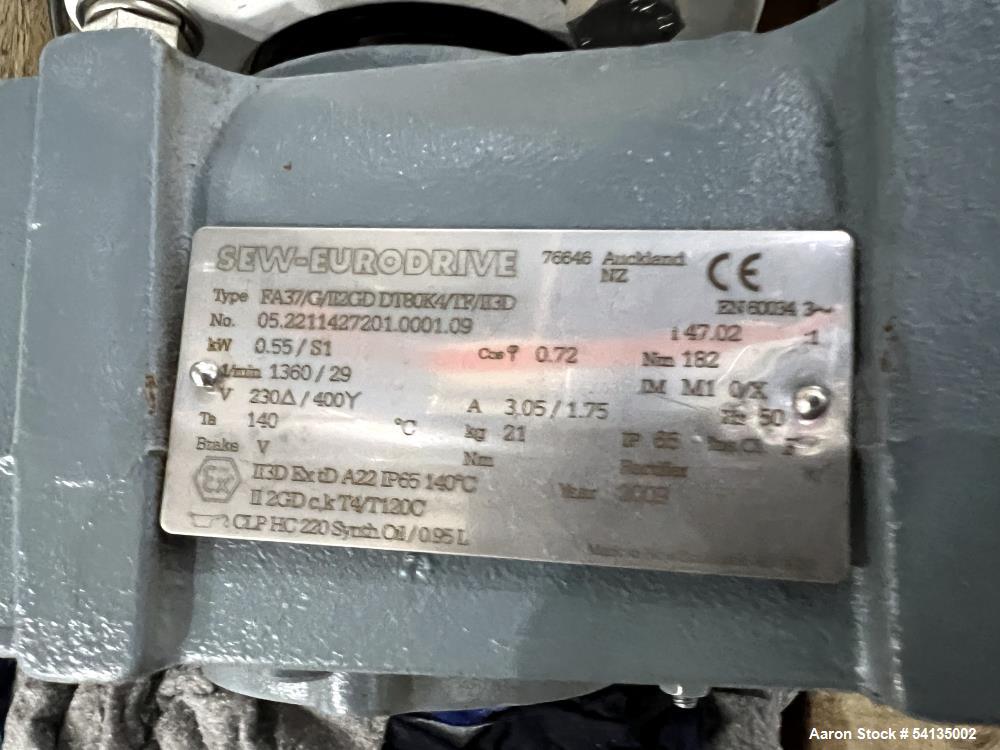

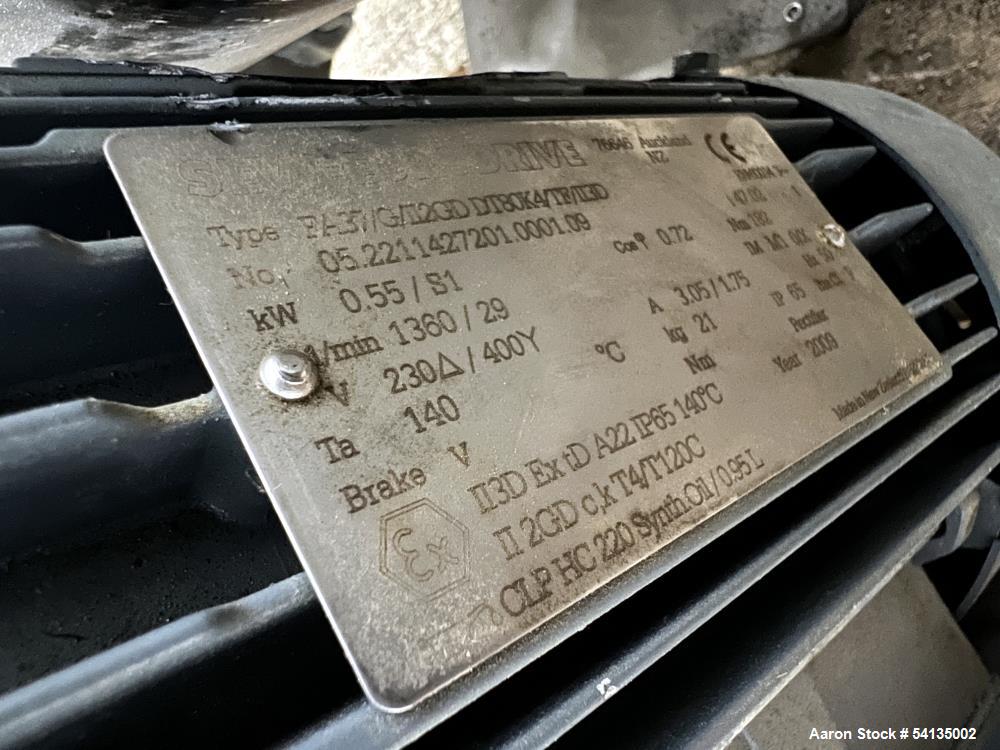

• Screw Drive Motor: 0.55 kW (0.73 HP), 230/400V, 1360 RPM

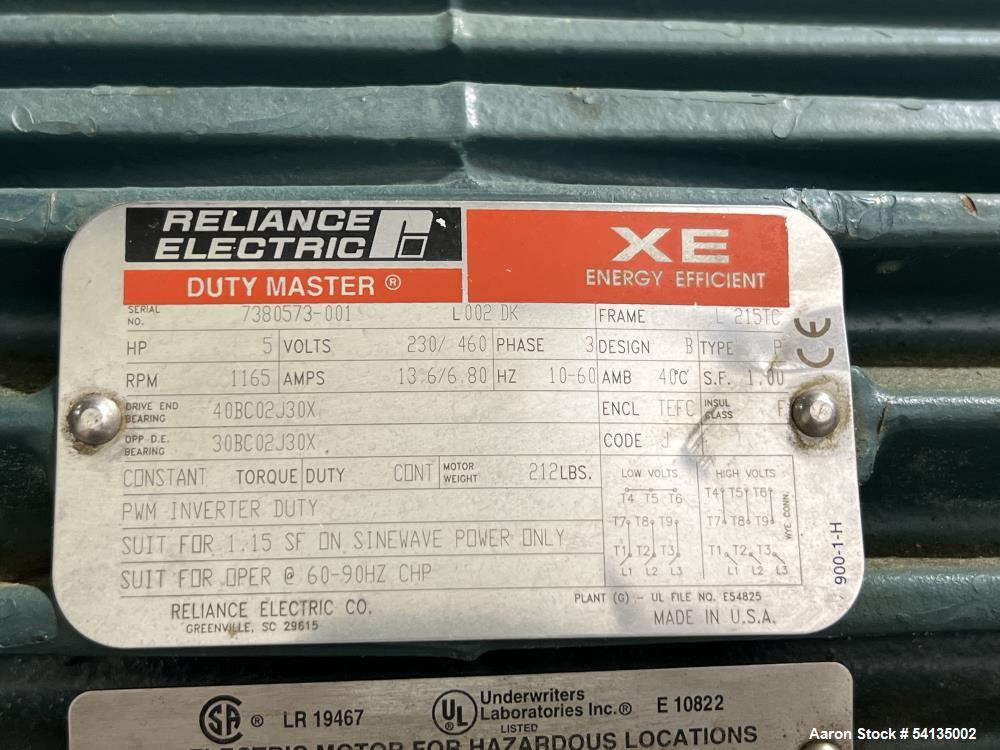

• Main Drive Motor: 5 HP, 3 Phase, 60 Hz, 230/460V, 1165 RPM

• Seal Fluid Reservoir: 6” diameter × 40” long with spray ball

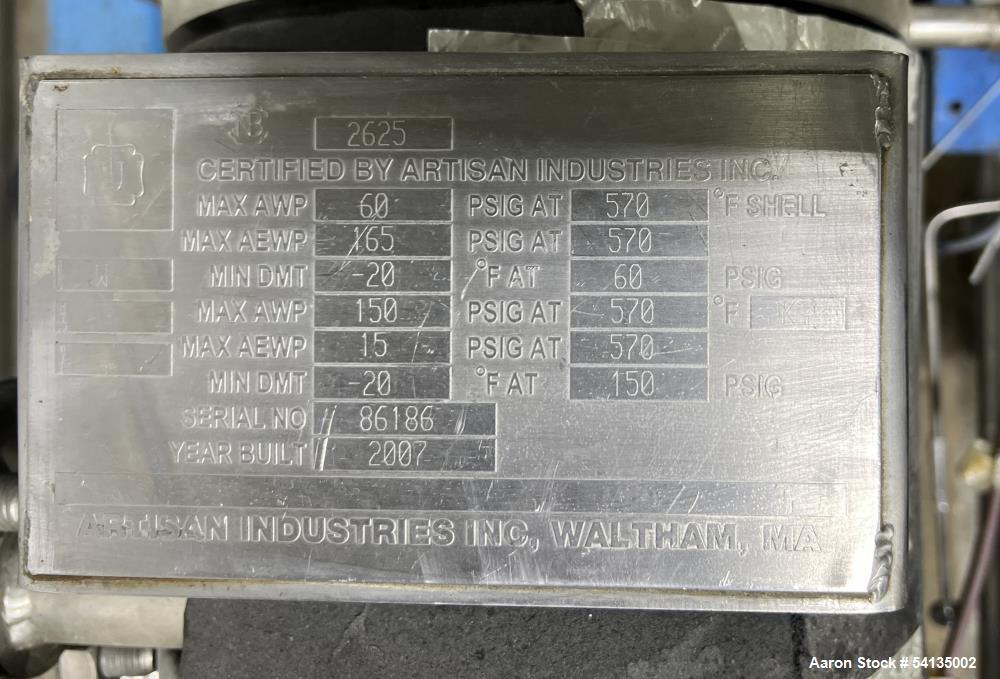

• Max Allowable Working Pressure (Shell): 60 PSIG @ 570°F

• Max AEWP: 165 PSIG @ 570°F

• Min DMT: 20°F @ 60 PSIG

• Max AWP: 150 PSIG @ 570°F

• Max AEWP (alt): 15 PSIG @ 570°F

• Min DMT (alt): -20°F @ 150 PSIG

• Frame: Carbon steel frame with integrated supports

• Accessories: Interconnecting piping, Keystone valve, Vibratory sensor

• National Board #: 2625

• Serial #: 86186

• Built: 2007

• Condition: Used, excellent

• Vacuum Pump: Not included

🧩 Applications

• Solvent recovery and purification

• Concentration of thermally sensitive materials

• Polymer and resin processing

• Pharmaceutical active ingredient concentration

• Food and beverage flavor extraction

• Chemical distillation and separation

• Essential oil purification

• Biofuel and plant extract concentration

• Viscous or high-boiling-point material evaporation

• Waste solvent reclamation

⚗️ What Might This Be Used For

This Artisan horizontal thin film evaporator is ideal for gentle, high-efficiency evaporation of liquids with high viscosity or low thermal stability. It allows for short residence time and rapid film renewal, minimizing thermal degradation while maximizing yield and purity. It’s suitable for chemical, pharmaceutical, food, and bio-based product processing.
